Swing-Away Lateral Thoracic Supports

Improving trunk control and lateral stability to help maintain proper posture.

To enhance lateral support beyond the depth of a JAY back, the JAY Swing-Away Lateral Thoracic Supports can be added. These are designed for riders who may have a postural tendency to lean towards the side and respond positively to having extended support. Two styles are available to meet specific needs. The standard JAY Swing-Away Lateral Thoracic Support provides additional depth where it is placed on the JAY back support. The Rotational style will pivot to an angle that can better match a body curve, providing surface area support exactly where needed. Three points of control at the trunk and pelvis can assist with providing the forces needed to assist with postural support.

Find Your Local Dealer

From $446

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorized dealer for a detailed quote.

Please call 1-800-333-4000 to order this product
JAY Swing-Away Lateral Thoracic Supports
Versatile positioning

Versatile positioning

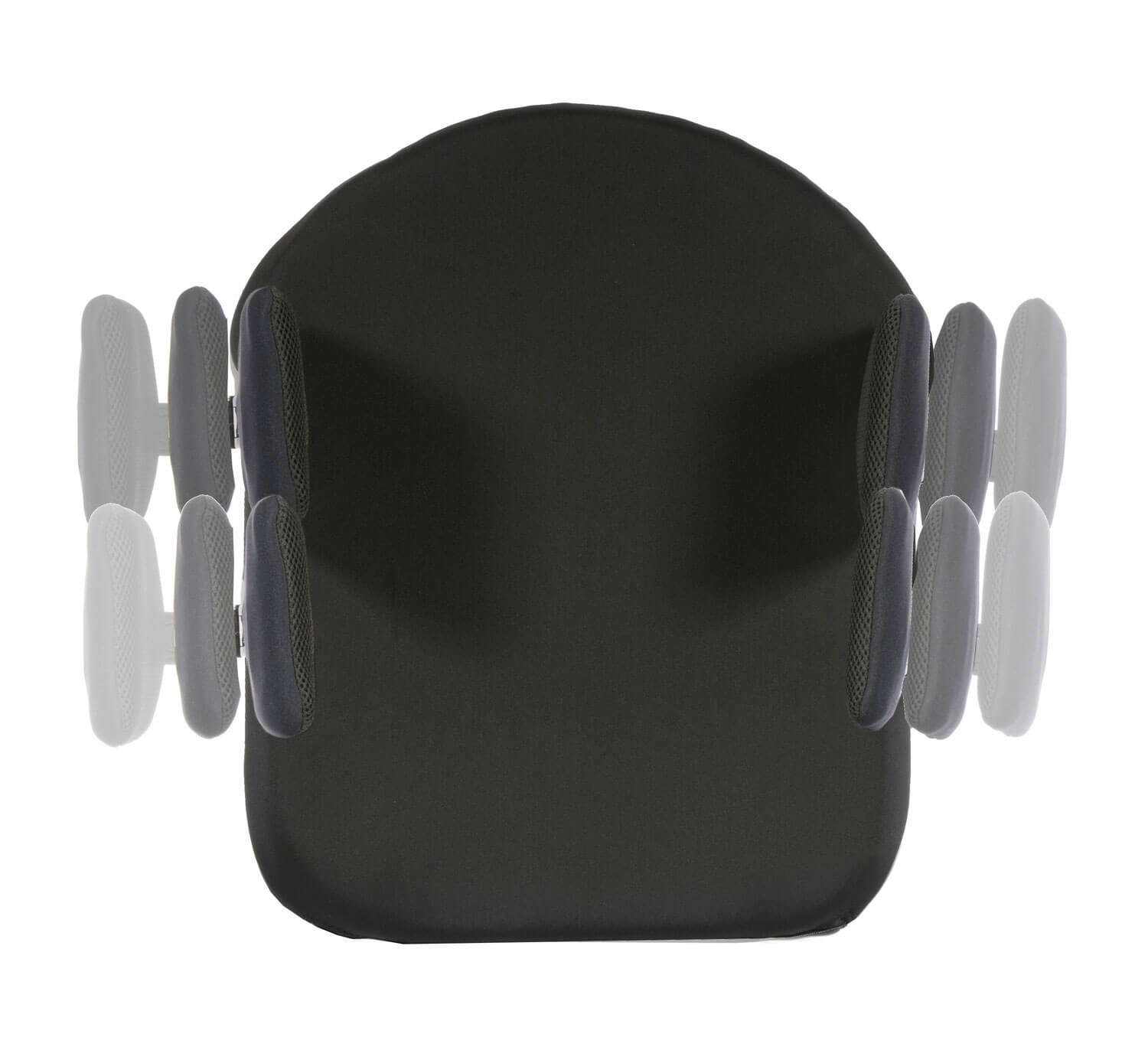

The JAY Swing-Away Lateral's slim profile allows it to be mounted either internally or externally on the shell to create a personalized fit. It's available with a variety of lateral pad sizes and longer slots on the pad brackets for flexibility in pad placement. Two can even be placed on one side if necessary, as each lateral is sold separately.

JAY Rotational Swing-Away Lateral Support

JAY Rotational Swing-Away Lateral Support

Add a third plane of adjustment to allow the lateral to be angled to match the trunk shape and position for the most complex scoliosis. The lateral pads rotate to meet contour angles and precise alignment. These laterals can be placed exactly where needed so that posture is accommodated and protected. Combine the lateral with a JAY back & cushion, a Whitmyer® headrest, and trunk support to provide optimal positioning for clients.

JAY Rotational Swing-Away Lateral articulation animation
Improved positioning & locking strength

Improved positioning & locking strength

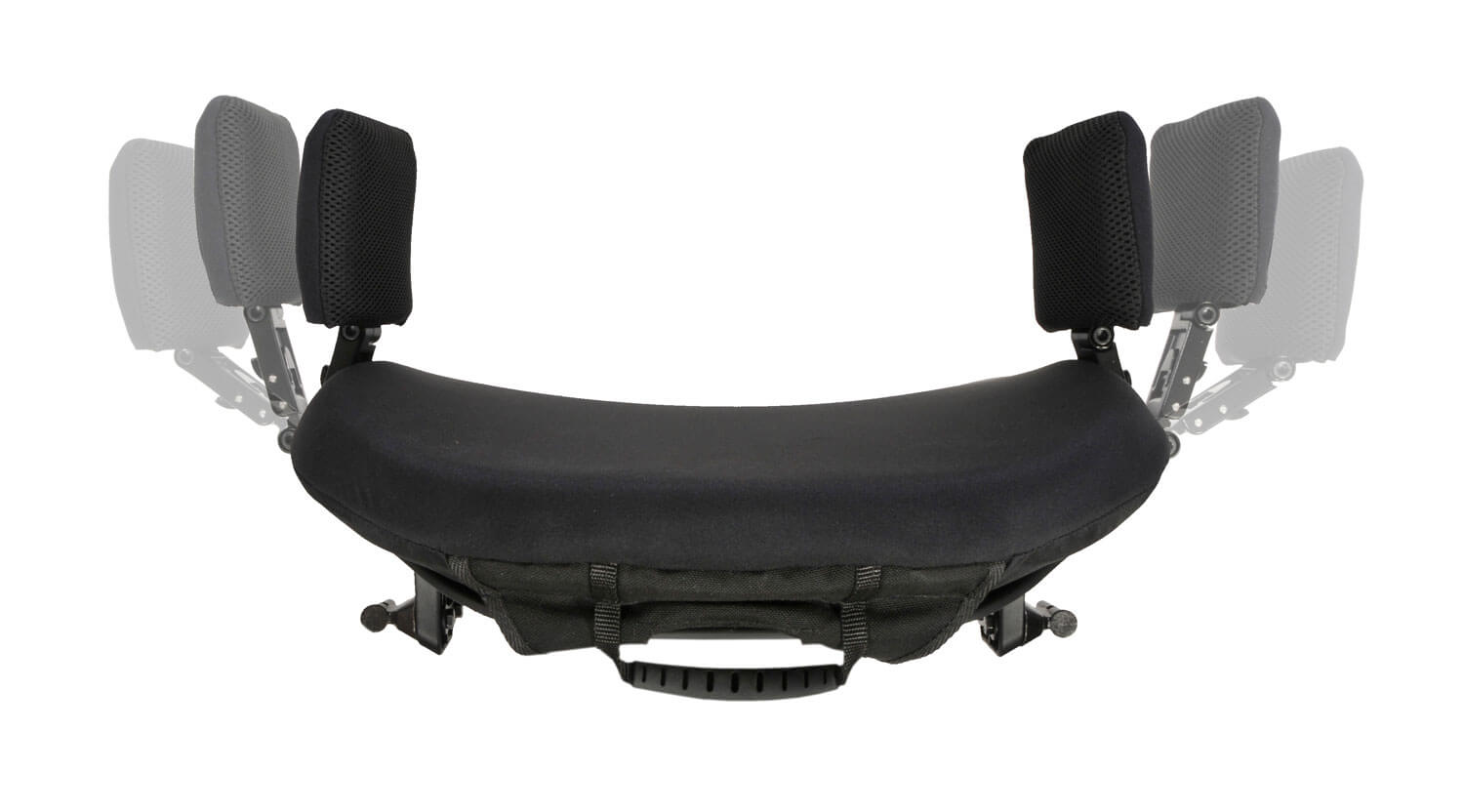

Two pivot points with interlocking teeth allow for 100mm (3.9") of adjustment and improved locking strength. On the JAY Rotational Swing-Away Lateral, an additional two pivot points are added to allow for both lateral and rotational adjustment. This helps to keep the lateral positioned where it's needed to help improve stability, posture, and balance. An easy-to-use push-button lever allows the lateral to swing out of the way for easy transfers.

Upholstery options

Upholstery options

Comes standard with a 3DX cover and pad. Stretch, premium leatherette, or reverse Dartex cover options are available through JAY Your Way.

Product Information
  • E0956
  • E1028
Starting Retail Price:$446
Product Type:Positioning Lateral
Product Height:1.75"
Product Width:
  • Standard Swing-Away: 8.25"
  • Rotational Swing-Away: 10"
Product Depth:0.7"
Product Weight:
  • Standard Swing-Away: 0.7 lbs. each
  • Rotational Swing-Away: 1 lbs. each
Product Options
Mounting Systems:Mounts either internally or externally on the shell.
Contact Surface Material:
  • 3DX
  • Stretch
  • Premium Leatherette
  • Reverse Dartex
JAY Your Way Modifications Available:Yes, select cover options.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
