5^R Rigid Wheelchair

Highly adjustable to elevate your mobility

Find Your Dealer

Highly adjustable wheelchair to elevate your mobility

The Quickie^® 5^R is designed to deliver superior rigid wheelchair performance day after day. As you and your environment evolve, or as you refine your riding capabilities, the 5^R’s frame and components adjust to elevate your mobility.

Find Your Local Dealer

From $2710

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorized dealer for a detailed quote.

Available colors:

The color options shown are for reference only. They are not intended as accurate representations.

Options and Prices

Meet Leslie Peoples

Watch how Leslie explores her city with ease in the lightweight 5^R.

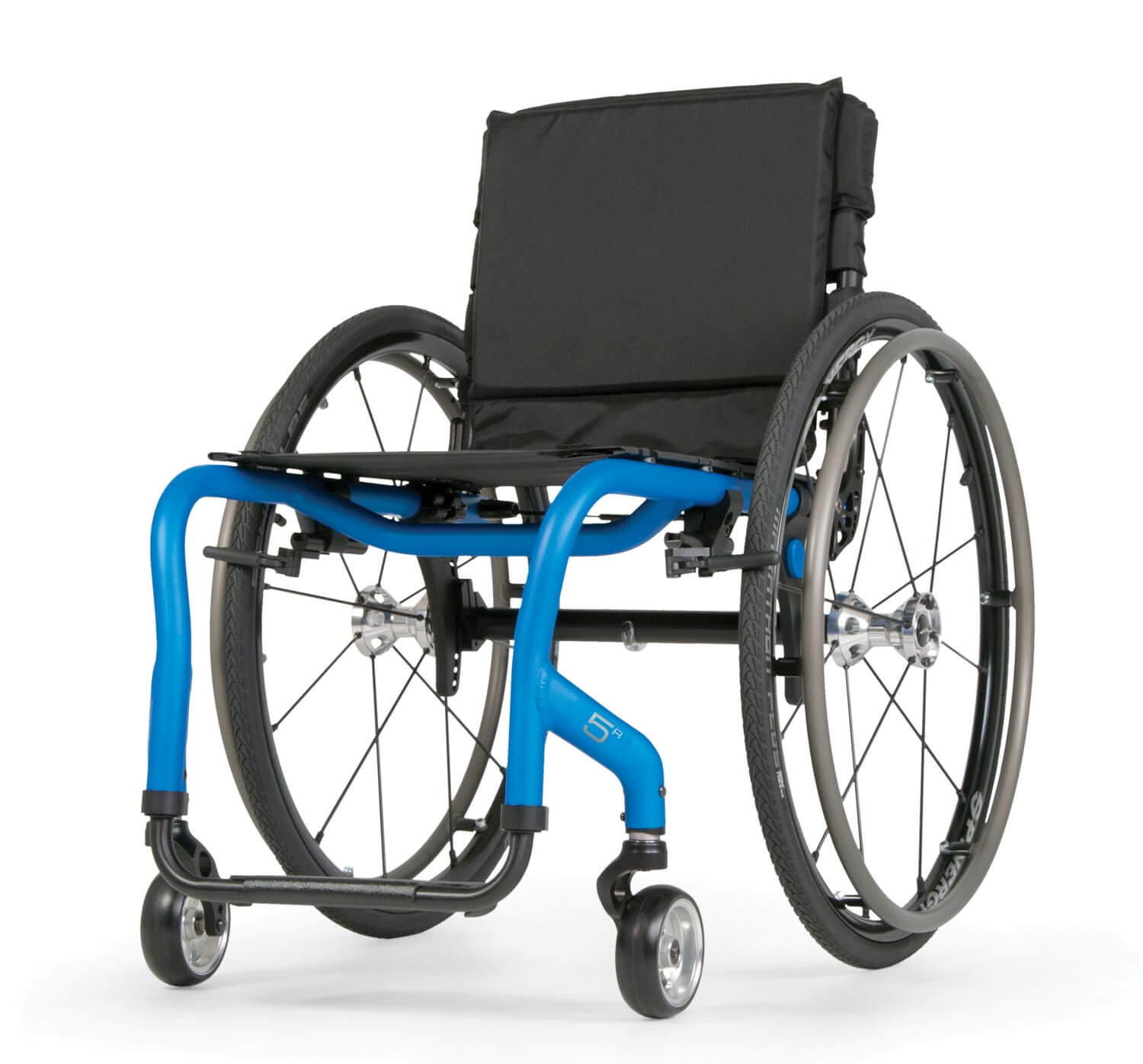

Open Frame Design with Hydro-Formed Caster Link

The Quickie 5^R’s open frame takes the proven ride quality and geometry that so many have loved about the GT and improves upon it with a swept-back, hydro-formed caster link for added style and a smooth ride.

The 5^R offers two frame options. The Classic frame features a traditional frame length for maximum stability. The shortened Performance frame length offers maximum responsiveness.

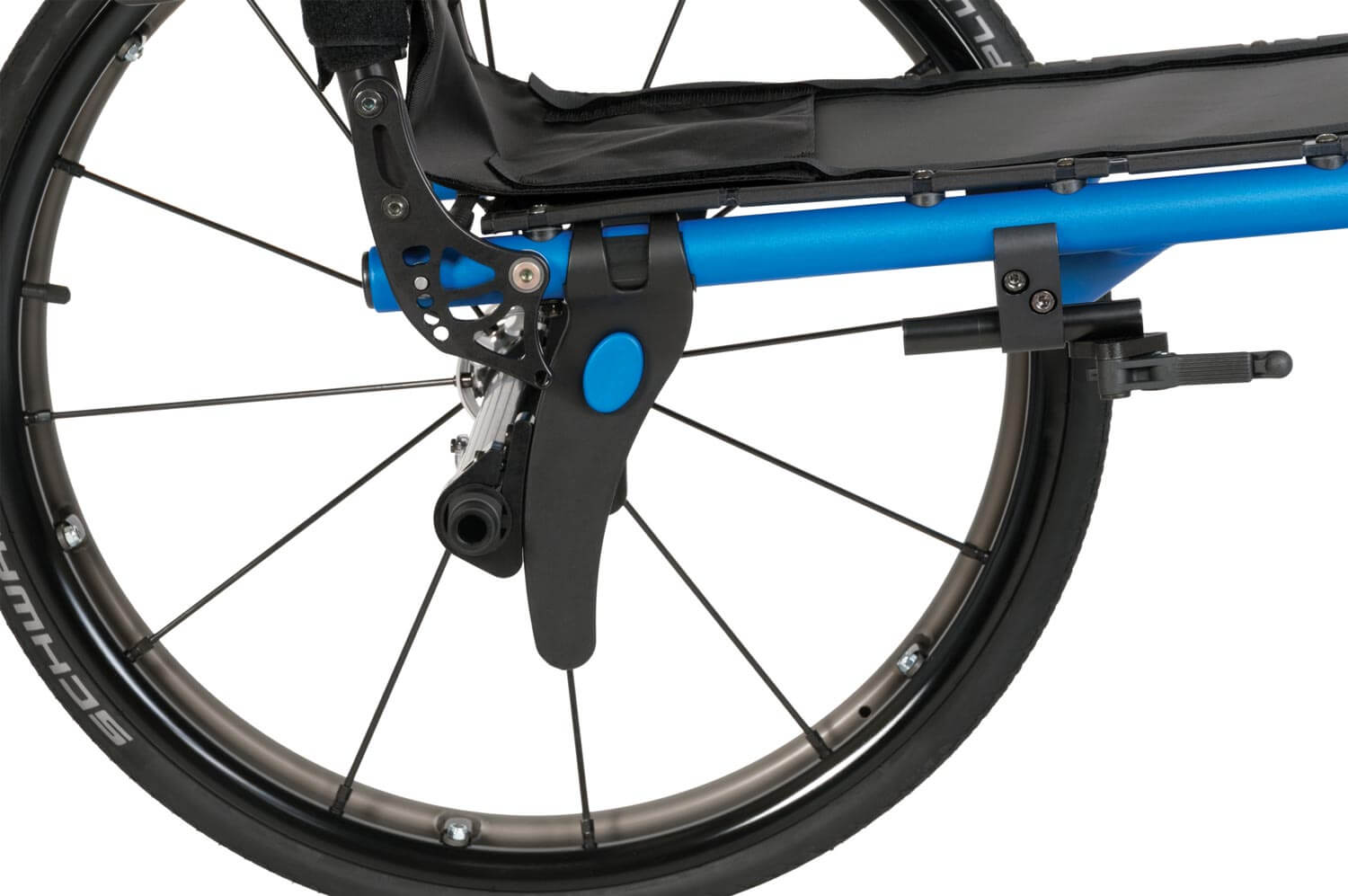

Swept-Back, Highly Adjustable Axle Plate Design

The swept-back axle plate design adds to the 5^R's style and features a color window for an extra pop of color on your frame.

But it isn’t just for looks - it is also incredibly quick to adjust. Available in two lengths - short (4.5" of vertical adjustment) and long (6" of vertical adjustment) - this axle plate ensures you are getting the adjustment range you need without adding unnecessary weight.

Access to Premium Options

The 5^R offers premium options that can elevate your product.

Go with the XTR Suspension Frame, Mountain wheels, Knobby tires, and Frog Legs suspension forks for rugged chair performance.

Add the Quickie Xtender motorized wheels to multiply the force you apply to the handrims by four times.

JAY Seating Options

Choose from JAY's superior cushions and backs to get the most out of your mobility system.

For lightweight skin protection, check out the JAY Lite or JAY X2.

For an incredibly versatile backrest, try the JAY J3 back...and don't forget to have the back shell painted to match or complement your chair at no extra charge.

Media

Specifications

Dimensions

Seat Width:12" to 20"

Seat Depth:12" to 20"

Front Seat-to-Floor Height:16" to 21"

Rear Seat-to-Floor Height:13" to 20"

Back Height:10" to 20"

Back Angle Adjustment:Fore (-) 17° to Aft (+) 8°

Frame Angle:

75°
80°
85°

Camber:

0°
3°
6°
Choose between 4° and 8° with XTR Suspension

Center of Gravity (COG) Adjustment:-1.5" to 4"

Shipping Dimensions:31" L x 24" H x 24" W

Product Information

Model Number:EIR10

HCPCS Code:K0005

Starting Retail Price:$2,710

Performance/Weights

Frame Type:

Classic
Performance
XTR Suspension
Depth Adjustable Back

Frame Material:Aluminum

Transit:Yes

User Weight Capacity:265 lbs.

Product Weight:

Standard Configuration: 21.5 lbs.
Transport: 12.9 lbs.
Transport without Wheel Locks: 11.65 lbs.

Average Shipping Weight:50 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Brochures

Order Forms

Owners Manuals

Parts Manuals

Quickie® 5^R Parts Manual

Other

Frequently Asked Questions

Can the backrest height be adjusted?

Yes, by raising and lowering the push handles in the rear side frame or back frame one can adjust the back height.

Where can I find the serial number on my wheelchair?

Your serial number is usually found on the frame underneath the seat (or on the cross brace of a folding wheelchair). It will be a white sticker with a barcode and a series of numbers.

I've scratched the frame of my wheelchair. Do you offer touch-up paint?

Unfortunately we don't. However, nail varnish is an extremely inexpensive and easy way of fixing any small scratches or blemishes to your wheelchair's frame.

What wheelchair cushions are available?

There are a number of different wheelchair cushions available for our products. You can view our complete range of JAY wheelchair cushions online. For the best comfort we advise you to contact your nearest authorized Sunrise Medical dealership.

Can I get my wheelchair in different colors?

Yes you can! You can find the list of available colors on the product's order form. If you're looking for something more unique, our Built-4-Me team can help supply a product to your specific needs.
